15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline 326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz

Certificaat
China N&S ELECTRONIC CO., LIMITED certificaten
China N&S ELECTRONIC CO., LIMITED certificaten
Klantenoverzichten
Wij zijn hoogtepunt van uitstekend geheugen teruggekomen, is N&S een zeer goede organisatie. Werkelijk deskundig voor LCDs.

—— ANDY

Wij zouden de dienst willen prijzen die wij van dit bedrijf hebben ontvangen dat faultlessly onze LCD paneeltoevoerlijn organiseerde.

—— M.H. Thatcher

Als ik een andere LCD paneelorde plan zal ik niet aarzelen om u opnieuw te contacteren.

—— Alejandro

Ik ben online Chatten Nu

15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline 326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz

15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline	326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz
15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline	326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz

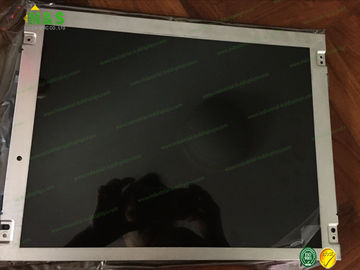

Grote Afbeelding :  15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline 326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz

Productdetails:
Plaats van herkomst: Korea
Merknaam: AVIC
Certificering: ISO9001
Modelnummer: TMS150XG1-12TB
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1
Verpakking Details: Antistatische zak, Bellenzak, Schuimdoos en Kartondoos.
Levertijd: 1-3 werkdagen
Betalingscondities: Western Union, T/T, MoneyGram, T/T
Levering vermogen: 500pcs/day

15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline 326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz

beschrijving
Resolutie: 1024×768 Deelvenster grootte: 15.0 duim
Paneeltype: a-Si TFT LCD overzicht: 326.5×253.5 mm
frequentie: 60 hz Ingangsspanning: 3.3V (Type.)
Hoog licht:

industrial touch screen display

,

industrial lcd panel

15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline 326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz



Our Advantage :

>>Quality Guarantee:

Our LCD Panels are 100% original and brand new!

Warranty : 12 months

You can enjoy the real panels directly from the LCD panel brand distributor.

>>Packing Guarantee:

All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!

>>Delivery Guarantee:

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!

>>After-Sale service

We have many years good experience on display solution.

Any question, we will reply you within 12 hours.



Feedback:

(1) Your early confirmation will be highly appreciated after receiving the item.

(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LQ079L1SX06 SHARP 7.9" 1536×2048
LQ079L1SX04 SHARP 7.9" 1536×2048
LQ133M1JW08 SHARP 13.3" 1920×1080
LQ156D1JX02 SHARP 15.6" 3840×2160
LQ156Z1JW01 SHARP 15.6" 3200×1800
LQ133T1JW14B SHARP 13.3" 2560×1440
LQ047K3SX04 SHARP 4.7" 720×1280
LS024Q8UC92 SHARP 2.4" 240×320
LK235D3HA0S SHARP 23.6" 1920×1080
LS055D1SX04 SHARP 5.5" 2160×3840



We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



TMS150XG1-12TB Basic Information

Panel Model TMS150XG1-12TB
Panel Brand AVIC
Descrition a-Si TFT-LCD ,15.0 inch, 1024×768
Panel Type a-Si TFT-LCD
Operating Temperature -10 ~ 55 °C
Storage Temperature -20 ~ 60 °C
Remarks PSWG Compatible



TMS150XG1-12TB Mechanical Features

Dot Resolution 1024(RGB)×768 (XGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 85 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.099×0.297 mm (H×V)
Pixel Pitch 0.297×0.297 mm (H×V)
Weight 1.00Kgs (Typ.)
Active Area 304.128×228.096 mm (H×V)
Bezel Area 307.4×231.3 mm (H×V)
Outline Dimension 326.5×253.5 mm (H×V)
Outline Depth 11.13±0.5 mm
Holes & Brackets Side mounting holes (4-M3)
Landscape or Portrait Landscape type
Touch Panel Without



TMS150XG1-12TB Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (Transmissive)
Display Color 16.7M (6-bit + Hi-FRC)
Color Gamut 60% NTSC (CIE1931)
Response Time 2/6 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.20/1.30 (Typ./Max.)(9 points)
Sunlight Readable N
