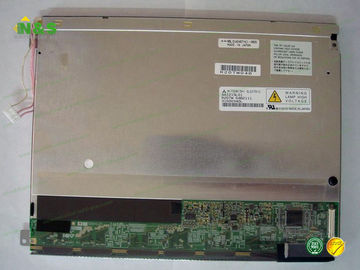

Normally White AA121SL01 12.1 inch 800×600 Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)
AA121SL01 Basic Information
| Panel Model |
AA121SL01 |
| Panel Brand |
Mitsubishi |
| Descrition |
a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type |
a-Si TFT-LCD |
| Model Alias |
T-51512D121J-FW-A-AB |
| Operating Temperature |
-20 ~ 70 °C |
| Storage Temperature |
-20 ~ 70 °C |
AA121SL01 Mechanical Features
| Dot Resolution |
800(RGB)×600 (SVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
82 PPI |
| Aspect Ratio |
4:3 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.1025×0.3075 mm (H×V) |
| Pixel Pitch |
0.3075×0.3075 mm (H×V) |
| Weight |
740g (Typ.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
246×184.5 mm (H×V) |
| Bezel Area |
249.0×187.5 mm (H×V) |
| Outline Dimension |
280×210 mm (H×V) |
| Outline Depth |
12.0 (Typ.) mm |
| Holes & Brackets |
Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
AA121SL01 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Response Time |
20/30 (Typ.)(Tr/Td) |
| Viewing Angle |
65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.332; Wy:0.367 |
| White Variation |
1.30 (Max.)(5 points) |
| Sunlight Readable |
N |
