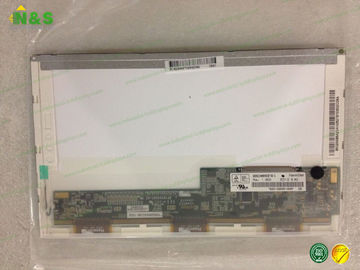

HSD089IFW1-B00 TFT LCD Module 8.9 inch Normally White with 195.072×113.4 mm Active Area Contrast Ratio 500:1 (Typ.)
HSD089IFW1-B00 Basic Information
| Panel Model |
HSD089IFW1-B00 |
| Panel Brand |
HannStar |
| Descrition |
a-Si TFT-LCD ,8.9 inch, 1024×600 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
0 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
HSD089IFW1-B00 Mechanical Features
| Dot Resolution |
1024(RGB)×600 (WSVGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
133 PPI |
| Aspect Ratio |
17:10 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0635×0.1890 mm (H×V) |
| Pixel Pitch |
0.1905×0.1890 mm (H×V) |
| Weight |
200/215g (Typ./Max.) |
| Surface |
Antiglare, Hard coating (3H) |
| Active Area |
195.072×113.4 mm (H×V) |
| Bezel Area |
198.27×116.6 mm (H×V) |
| Outline Dimension |
213.36×129.55 mm (H×V) |
| Outline Depth |
5.15/5.45 (Typ./Max.) mm |
| Holes & Brackets |
Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
HSD089IFW1-B00 Optical Features
| Display Mode |
TN, Normally White, Transmissive |
| Brightness |
220 cd/m² (Typ.) |
| Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Display Color |
262K (6-bit) |
| Response Time |
5/20 (Typ.)(Tr/Td) |
| Viewing Angle |
70/70/50/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
6 o'clock |
| White color Chromaticity |
Wx:0.310; Wy:0.330 |
| White Variation |
1.43 (Max.)(9 points) |
| Sunlight Readable |
N |
